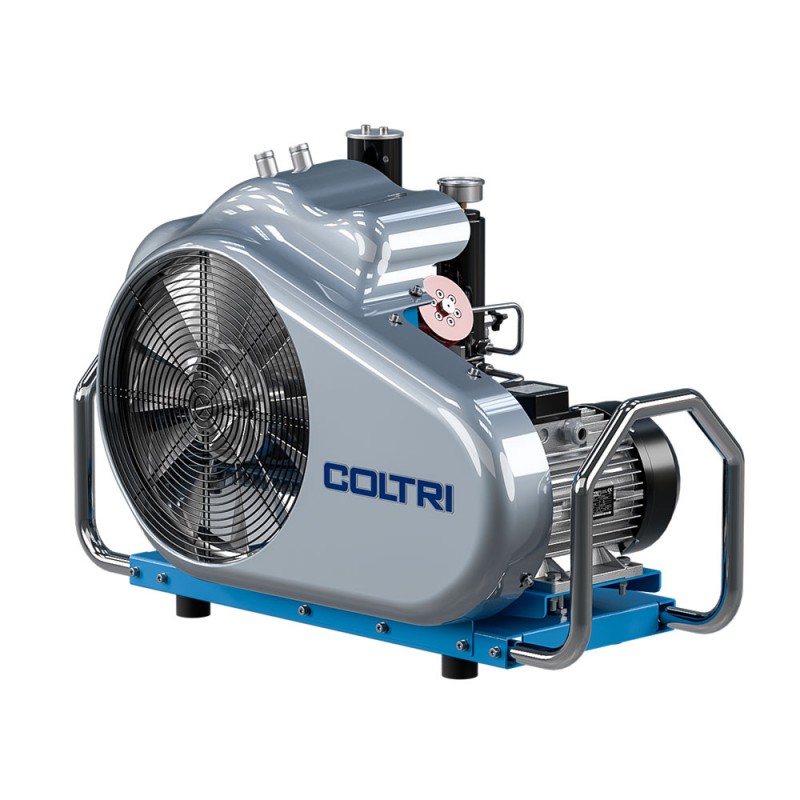

Breathing air compressor COLTRI SMART 210 EM - 12.6 m3/h - 240 V single-phase.

High pressure breathing air compressor COLTRI SMART 210 EM - 12.6 m3/h - 240 V single-phase.

COLTRI SMART breathing air compressors represent the evolution of the Standard, one of the best known and best-selling models in the world

3-stage high pressure pumping unit.

• Monobloc in aluminum,
• Gooseneck in forged steel
• Splash lubrication
• Forged aluminum connecting rods
• Main roller bearings
• Roller connecting rod bearings
• 1st and 2nd stage cylinders in aluminum with hard nicasil coating
• 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
• 3rd stage cylinder in special treated steel.
• Stainless steel intake and exhaust valves
• Interstage cooling pipes in stainless steel
• Separator after the 2nd and 3rd stage
• Safety valves after each stage
• Maxifilter filter system

The purity of the air is achieved.

The Maxifilter purification system enables reliable treatment of the breathing air according to DIN EN 12021 when using original filter cartridges. Placed after the last compressor separator and before the pressure maintenance valve, it has the separator after the 2nd and 3rd stage to create a first, fundamental barrier against humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 620m³

Frame

Essential and compact, this frame is designed to facilitate portability. The tilting motor-holder plate guarantees the constant tension of the V-belt. The protective casing in thermo-formed material conveys the cooling air on the cylinders and on the inter-stage pipes. This guarantees a high compression efficiency

The highest air quality is the goal of a Coltri compressor.

Air purity and quality are two essential characteristics of our compressors. The air you breathe from Coltri compressors complies with the EN 12021: 2014 standards: this is why you can work, have fun and exercise with them in absolute safety.

Equipment :

• Frame color Blue RAL 5015.
• manual drain valves
• Oil and water separators on 2nd and 3rd stage
• Safety valves on 1st, 2nd, 3rd stage
• Maxifilter breathing air filtration according to EN 12021:2014 standard
• 2 Cylinder connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
• Carrying handles

technical data of the pumping unit:

• Flow rate: 11.7 m3/h - 195 L/min
• Number of laps of the pumping unit: 1500 tr/min
• Electric engine: 4 Kw 230-240V / 50 Hz single-phase - 24 A
• Working pressure: 232, 300, 330, 420 bar ( choose when you place the order)
• Filling time for a 10l cylinder from 0 to 200 bar : 10 minutes
• Noisiness: 92 Db
• Weight: 100 Kg
• Dimensions: 100 cm L x 46 cm W x 70 cm H
