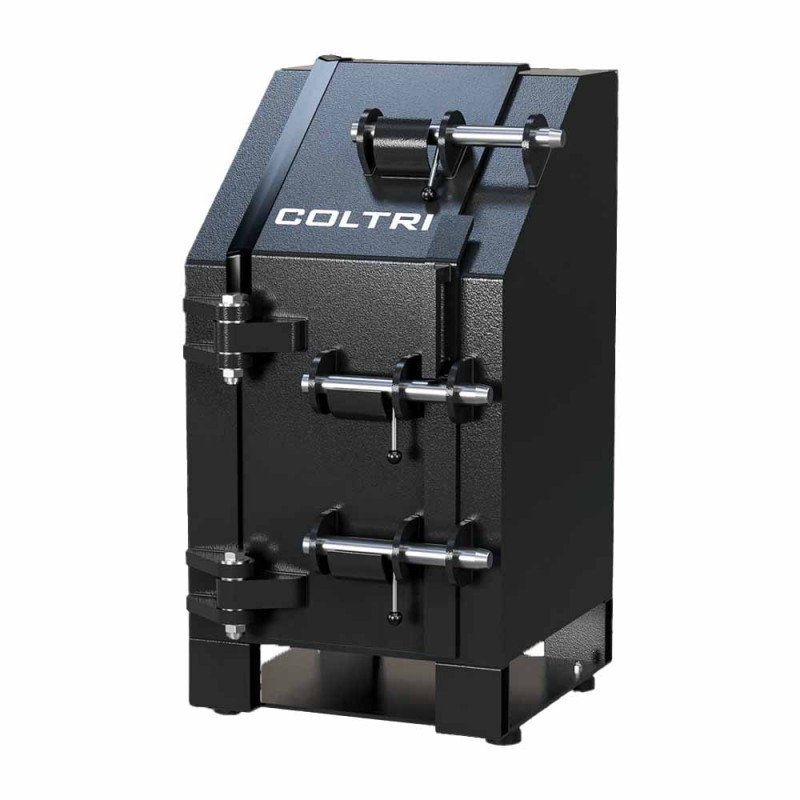

COLTRI Armor 4 explosion-proof ramp for inflation of 4 ARI cylinders or diving block

0
reviews

Leave review
Quantity

Contact us for the price

COLTRI Armor 4 Secure Anti-Explosion Regulator for Inflating 4 ARI Bottles and Dive Blocks :

Anti-explosion protection has become a prescription or standard in many countries following accidents due to bottle explosions during filling. This regulator designed by COLTRI replaces costly protection measures for filling spaces and thus ensures a high level of legal safety for the operator.

  • Protection against bottle explosions or the detachment of filling hose connections due to an extremely robust steel safety cell
  • Transportable for mobile use, also in vehicles
  • Controllable air evacuation at the top of the cabinet in case of a bottle explosion. For the protection of operators
  • Easy loading, even in tight spaces
  • Automatic locking of the anti-explosion bottle cart during filling effectively prevents incorrect handling

Equipment includes:

  • 1 anti-explosion safety cabinet
  • 1 safety door opening that prohibits filling when it's not open.
  • 4 Coltri hoses with DIN 300 bar fittings (DIN 230 bar on request)
  • 4 individual control valves
  • 4 individual purge valves
  • Input connection: DIN 5/8" fitting (other fittings possible: 6S, 8S, 1/4, Coltri...)

Additional information:

  • This anti-explosion cabinet allows simultaneous filling of up to 4 ARI bottles or diving bottles
  • Possibility to integrate a downstream pressure relief station if the regulator is connected to a buffer bottle rack
SC000856

Data sheet

Height
104 cm
Width
71 cm
Depth
60 cm
Weight
205 Kg
Pression de service
420 bars maximum
