• Stainless steel 4-valve quick purge joystick inflation ramp
Stainless steel 4-valve quick purge joystick inflation ramp

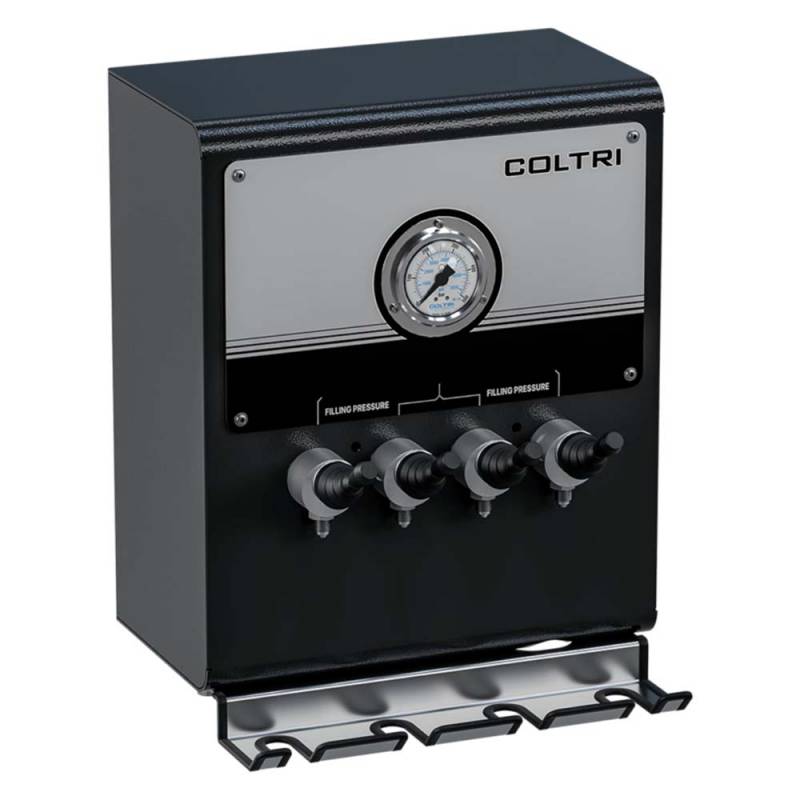

Filling panel with 4 lever valves

COLTRI filling panel for ARI and diving cylinders with 3-way quick purge valves and 4 flexible outlets with tap and purge

0
reviews
Leave review
€2,110.00
Tax included
Quantity

COLTRI filling panel with 4 outlets and quick purge lever valves:

  • Steel panel frame, with an oil-filled pressure gauge for accurate needle stabilization, and 4 independent outlets.
  • To be connected to a compressor outlet or buffer bottles.
  • This ramp allows for the inflation of diving cylinders and ARI cylinders used by fire safety services.

Equipment includes:

  • 1 welded steel frame
  • 1 pressure reading gauge
  • 4 3-way quick purge joystick valves (with integrated purge)
  • 4 Coltri 1.2-meter hoses
  • 4 loading connections with anti-whip safety check valves (DIN 230 or DIN 300). The safety check valve prevents hose whip in case of accidental valve opening without the hose being connected to a diving cylinder.
  • Inlet connection: Coltri-type connector (other connectors available upon request: 6S, 8S, 1/4" female, etc.)

Note: It is not possible to use a DIN-Yoke adapter that screws onto the DIN 230-bar connector with the anti-whip check valve connections. If you have diving cylinders with a yoke-type valve, consider the SC000325 or SC000329 inflation ramp with conservation valves at the end of the hose.

Installation:

  • Wall-mounted with 4 screws (not included)
  • Connection to the compressor or buffer bottles via flexible hoses or stainless steel piping (contact us for a supply quote).
  • Preferably avoid installing the ramp in an environment exposed to chloramines. Chlorine can cause surface oxidation on the ramp and stainless steel tubes.

Options:

  • Loading hoses secured with anti-whip cables instead of original hoses

This inflation ramp does not come with a regulator or safety valve. It is designed to be connected directly to the compressor or a buffer bottle rack that is already protected by a safety valve, and its operating pressure does not exceed the pressure of the diving cylinders to be filled.

For any other usage, we can provide you with a regulator, pressure gauges, and safety valves to meet your needs. Please contact us for a quote.

CSC000327I

Data sheet

Height
20 cm
Width
60 cm
Depth
20 cm
Weight
env. 6.5 Kg
Pression de service
230, 300 ou 330 bars
Matière
Acier inoxydable

Specific References
