Regulated stainless steel inflation ramp with 4 outlets and joystick valve

Filling panel regulated with 4 outlets and joystick valve

COLTRI ARI inflation ramp and diving cylinders with a pressure release system, 3-way quick purge valves, and 4 flexible outlets with tap and purge

0
reviews

Leave review
€2,450.00
Tax included
Quantity
ON SALE

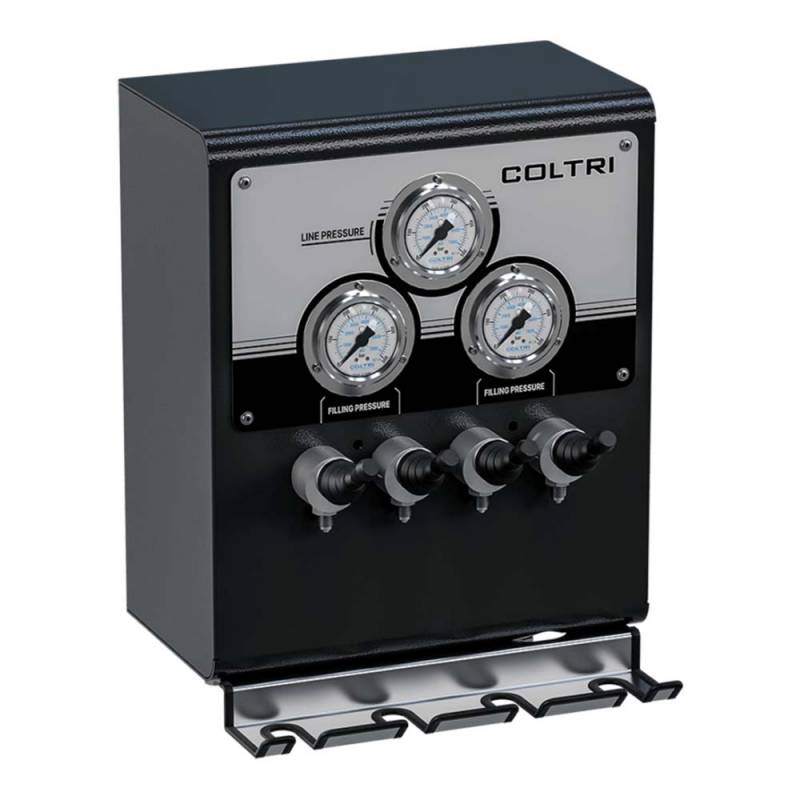

COLTRI regulated inflation ramp with a 4 flexible outlet manifold and quick purge joystick valves

  • Painted RAL9005 frame with oil-filled pressure gauge for accurate needle stabilization, and 4 independent outlets.
  • The two outlets on the right are connected to the network pressure. This means either the final pressure of the compressor if the ramp is directly connected to it, or the buffer pressure, or the pressure regulated by a regulator positioned upstream of the ramp.
  • The two outlets on the left are regulated by a regulator and protected by a safety valve, allowing pressure adjustment between 140 and 300 bars.
  • This ramp is designed for inflating diving cylinders and ARI cylinders used by fire safety services.

Possible Configurations (please specify when ordering):

  • 2 outlets at 300 bars + 2 outlets at 200 or 230 bars
  • 2 outlets at 230 bars + 2 outlets at 200 bars
  • 2 outlets at 200 bars + 2 outlets at 176 bars
  • Other configurations available upon request.

Equipment includes:

  • Welded steel frame with paint RAL9005
  • 1 adjustable and lockable regulator to set the pressure for the two outlets on the right
  • 1 safety valve to protect the two outlets on the right in case of misadjustment or regulator failure
  • 1 input pressure gauge (e.g., 300 bars)
  • 1 regulator output pressure gauge (to read the regulated pressure, e.g., 230 bars)
  • 4 three-way lever quick-loading valves (with integrated purging)
  • 4 Coltri 1.2-meter flexible hoses
  • 4 loading connections with anti-whiplash safety check valves (DIN 230 or DIN 300). The safety check valve prevents hose whipping in case a valve is accidentally opened without being connected to a diving cylinder.
  • Note: It is not possible to use a DIN-Yoke adapter that screws onto the 200-bar DIN connection with anti-whiplash check valves. If you have diving cylinders with yoke-type valves, you should consider the SC000325 or SC000329 inflation ramp with conservation valves at the end of the hoses.
  • Inlet connection: Coltri-type connection (other options available upon request: 6S, 8S, 1/4" female, etc.)

Installation:

  • Wall-mounted using 4 screws (not provided)
  • Connection to the compressor or buffer by flexible hoses or stainless steel piping (please consult us for a supply quote)

Options:

  • Secure loading hoses with anti-whiplash cables instead of the original hoses

Important:

This inflation ramp is not equipped with a safety valve for the two non-regulated outlets. It is designed to be directly connected to the compressor or a buffer rack already protected by a safety valve, with a service pressure that does not exceed the pressure of the diving cylinders being filled.

For any other use, we can provide an additional external regulator, pressure gauges, and safety valves to meet your requirements. Please consult us for a quotation.

CSC000331N
2 Items

Data sheet

Height
20 cm
Width
60 cm
Depth
20 cm
Weight
env. 7Kg
Pression de service
230, 300 ou 330 bars
Matière
Acier inoxydable

Specific References
